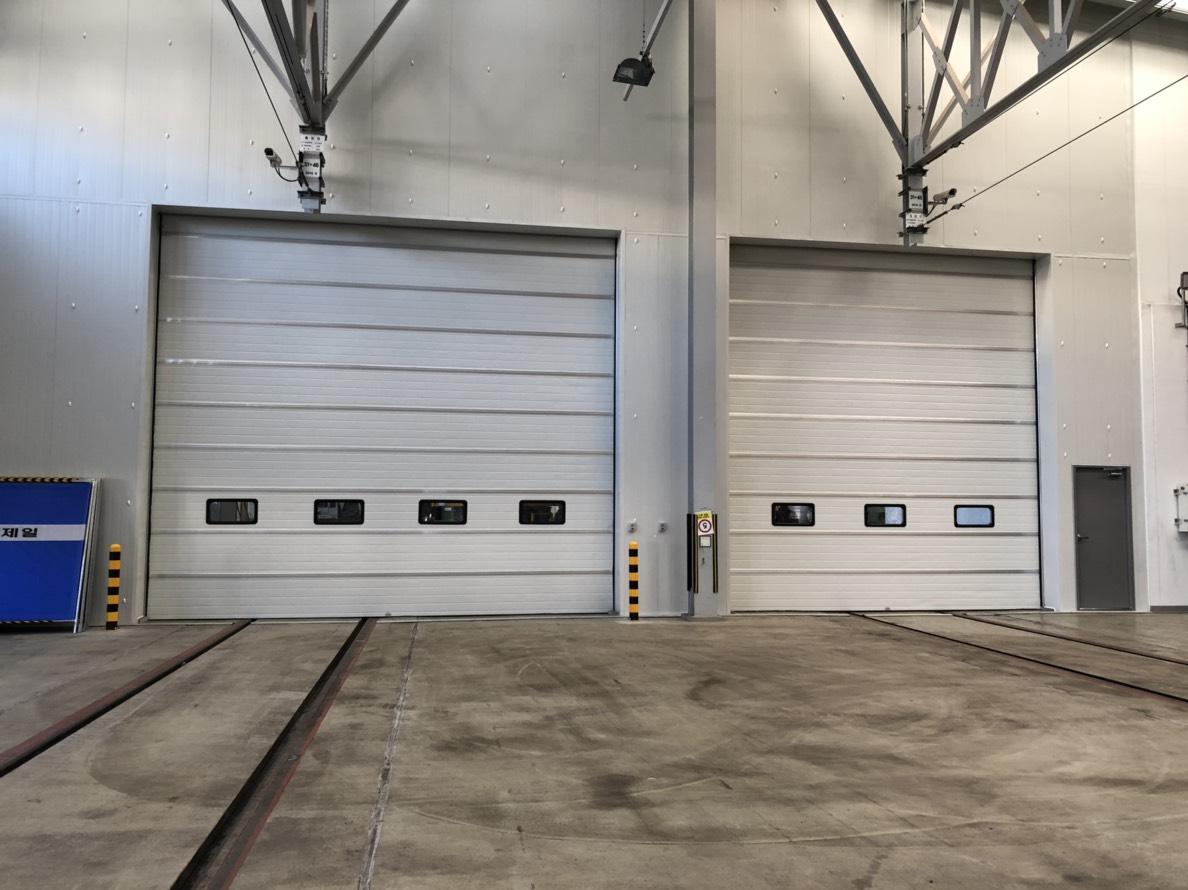

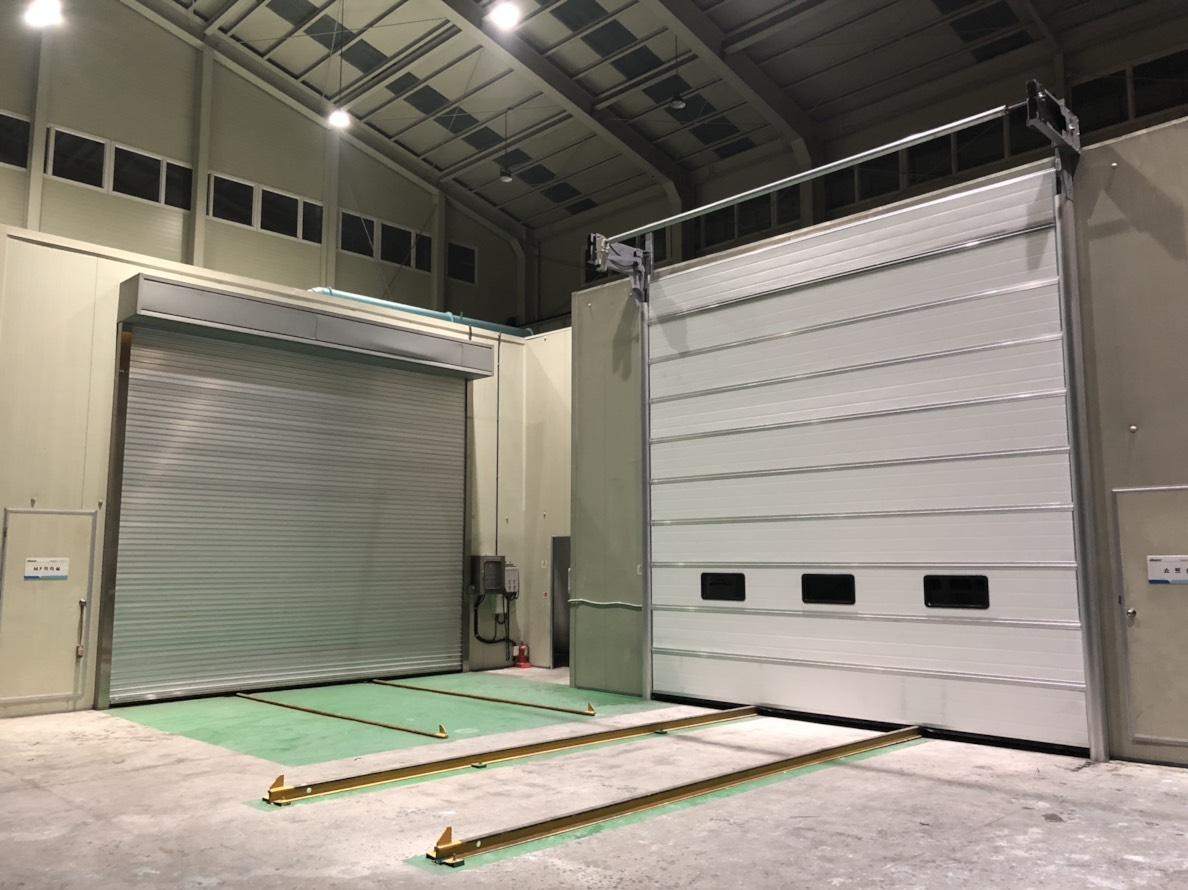

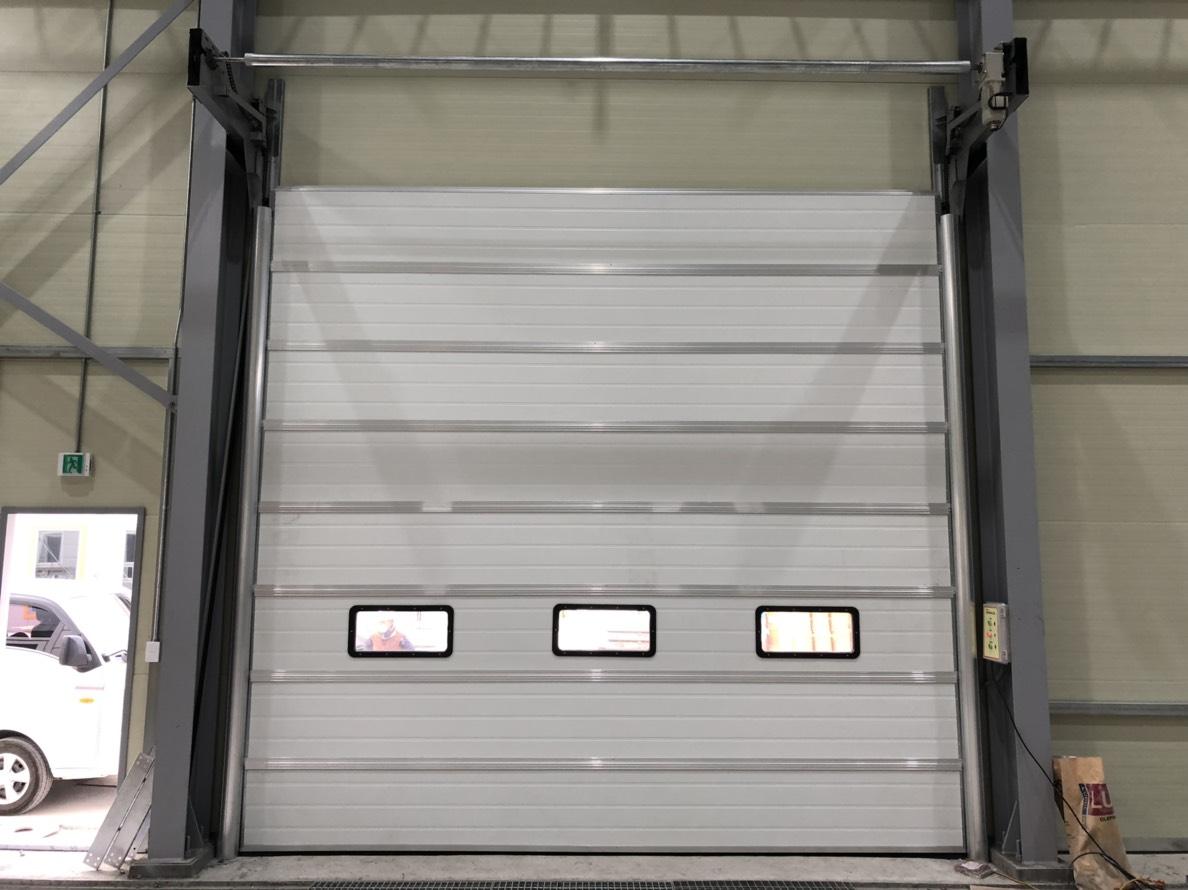

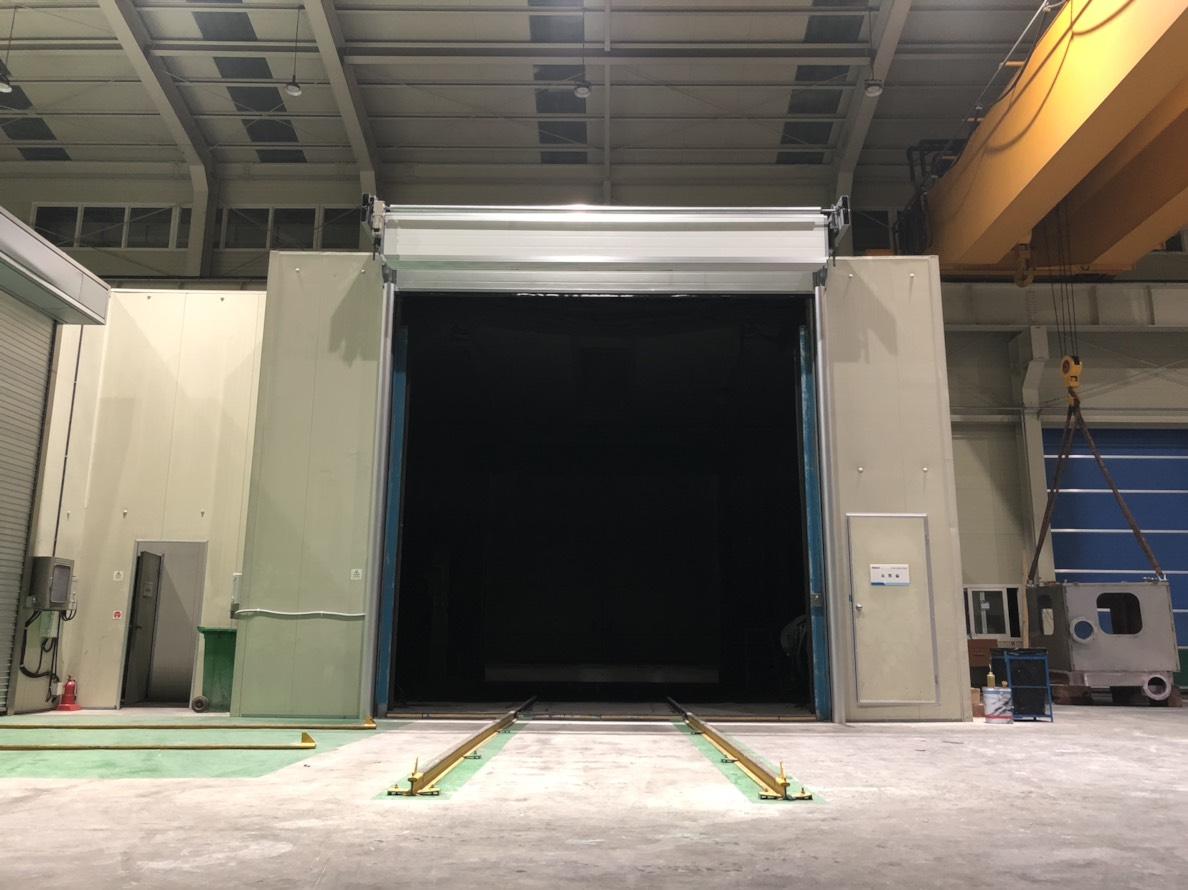

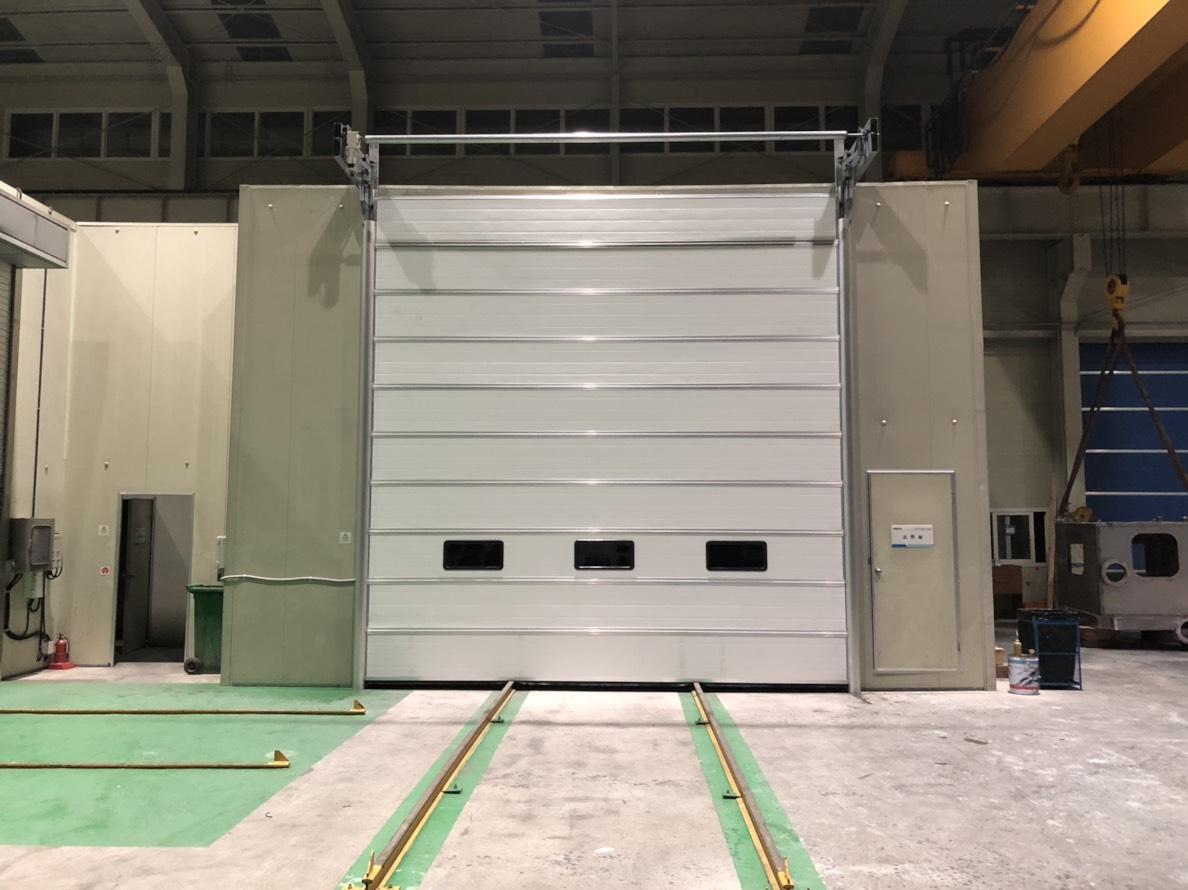

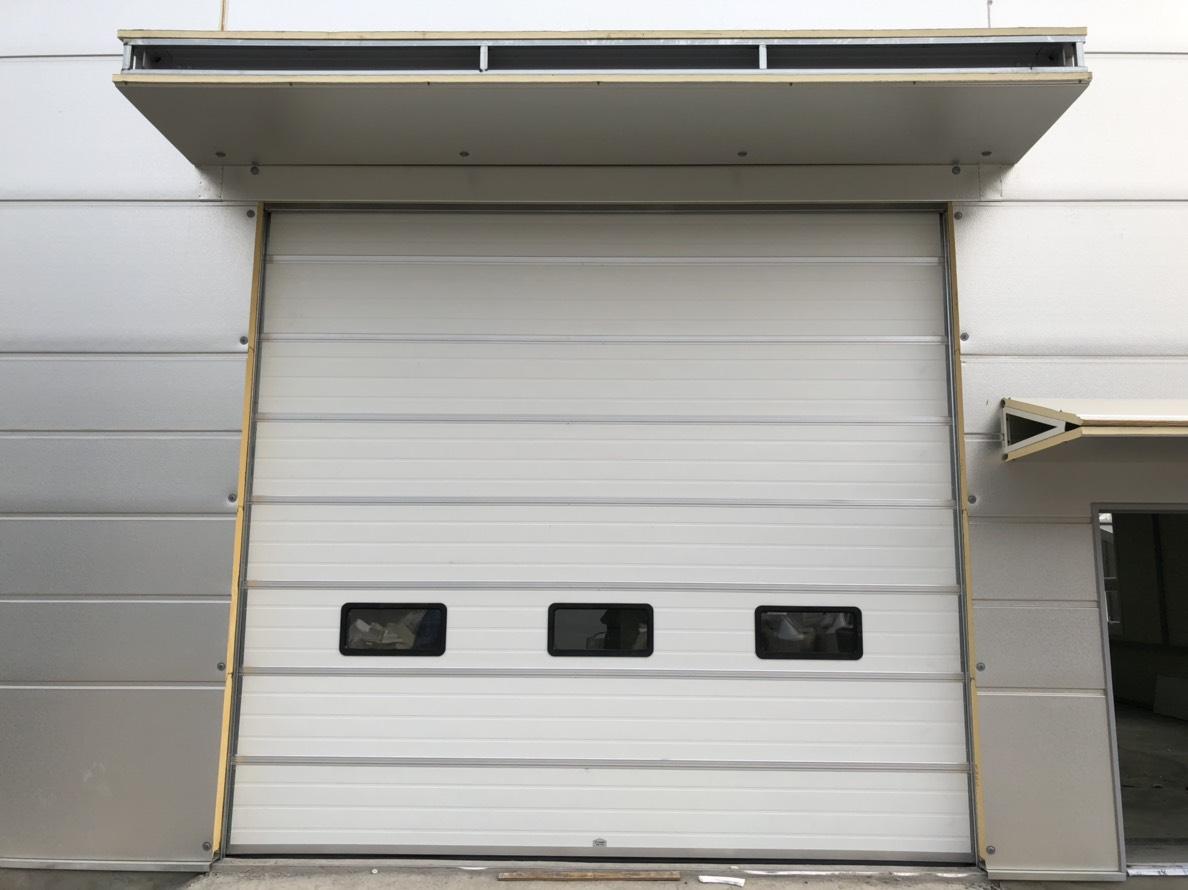

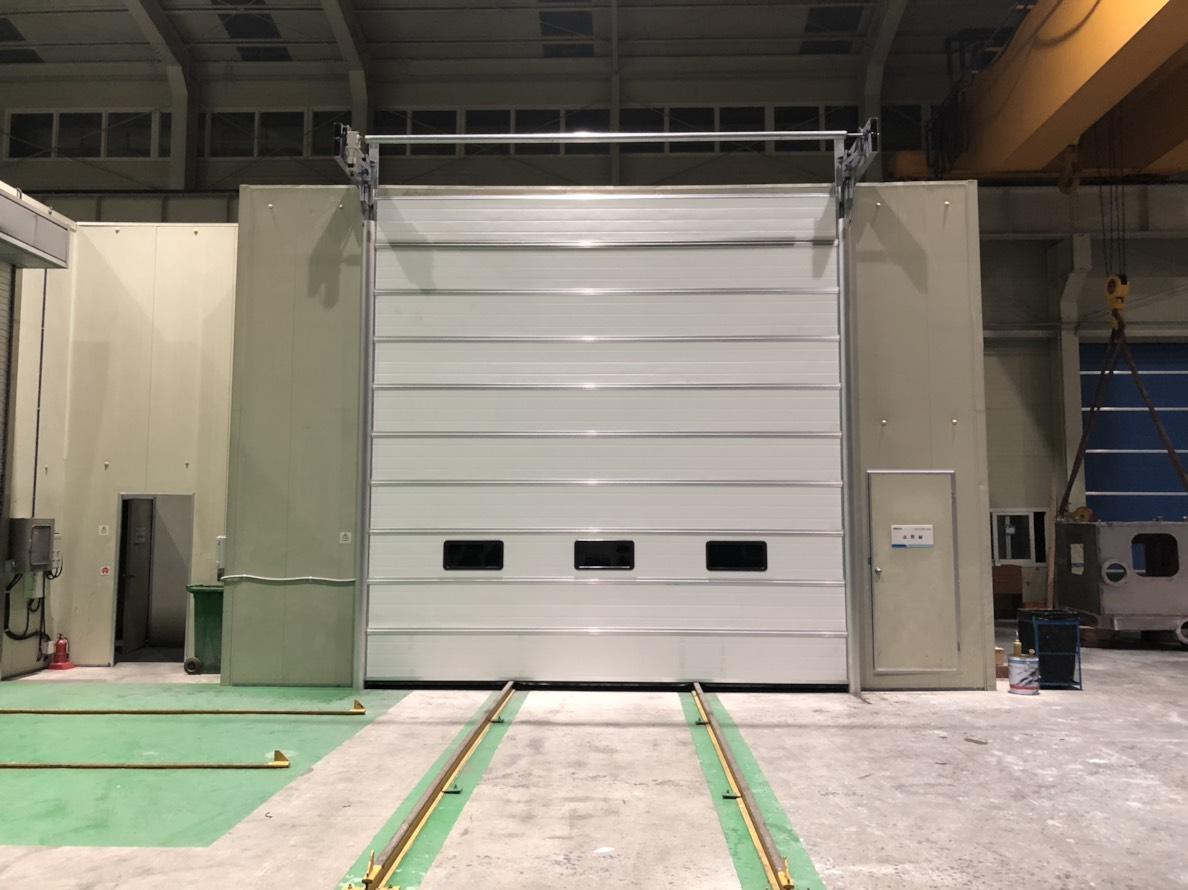

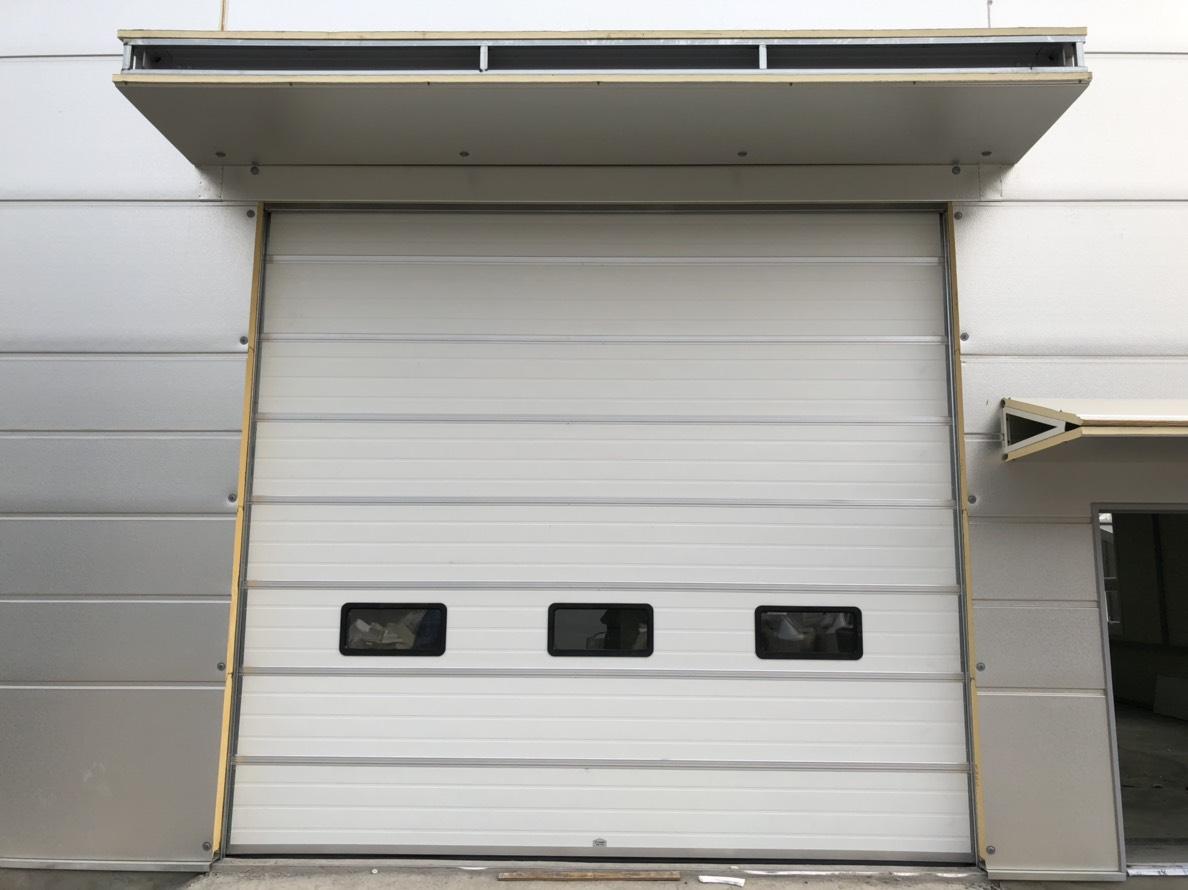

Overhead Door COAD-20 Stacking Overhead Door
Detail Specification
| Product name | Overhead door - stacking |
| Material | 0.5mm galvanized steel sheet (polyester coating) |
| Internal filler | Polyurethane |
| Thickness | 50mm |
| Maximum wind speed | 45m/sec |
| Opening and closing speed | 0.3~0.7m/s |
| Color | White, Silver |
| Window size | 630mm X 340mm X 3T |
| Glass style | Transparent |
| Panel surface | Stucco, woodgrain, etc. |
| Minimum Clearance | Headroom 1,000mm, side room 250mm |
| Production range | W8,000 X H5,000 (mm) |
| Warranty | 1 year |
| Usage | Factory, logistics center, warehouse, etc. |
- Standard Lift
- Type of building | Buildings for standard industry
Advantage | the standard lift track set designed optimally for general buildings is the most general method based on the spring package right above door.
- High Lift
- Type of building | High ceiling & high lift tract set spring package
is installed high over door.
Advantage | A high-rise vehicle is able to pass through an opened door without any obstacle of horizontal track. This type of track is applied to the case where there is a large space over door, for instance, the case where a high-rise vehicle needs to pass through.
- Low Lift
- Advantages – Implementation of maximum sunlight height with the minimum head room – Equal to standard lift, but spring package at the end of horizontal track – The space between door opening and ceiling does not need more than 265mm.
- Vertical Lift
- Type of building | a place with very high ceiling and high work space
Advantages| A high-rise vehicle is able to pass through an opened door without any obstacle of vertical track. If there is enough space between sunlight height and root, this type of door is able to be opened vertically.
- Panel
- Material : double-side 0.5mm galvanized plate
Aluminum internal filling material : polyurethane filling
Thickness: 50mm
Surface finishing : polyester finishing after embossing treatment
Feature : excellent panel strength and insulation performance; excellent corrosion-resistance and endurance; lighting and perspective view with the use of dual acrylic window
- Frame
- Material : high-strength AL extrusion structure
Feature : wind pressure dual sealing structure of guide rail to maximize cooling & heating effect
Internal brush attachment to prevent noise and damage from friction and vibration; enhanced air tightness and sealing
- Motor Bracket
- Sumitomo Hypoid Geared Motor with high efficiency, low noise and lightweight
Chain and Sprocket with high strength and high tension; panel separation and vertical storage structure
Product Components
-
4.54 hi lift cable drum -
9 inch drum -
11v drum -
13inch drum -
18inch drum -
18v drum -
54inch hi lift cable drum -
120 inch Hi-Lift Cable Drum -
164 inch hi lift cable drum
-
Bushing Key way1 -
Bushing Key way2 -
Bushing Key way3
-
Cable folder M size -
Cable folder S size -
Cable folder
-
R-Track 2mm -
R-Track 3mm -
R-Track 4mm
-
Spring Bracket 1 -
Spring Bracket 2 Msize -
Spring Bracket 2 -
Spring Bracket
-
Spring Fittings Large -
Spring Fittings -
Spring Fitting Set
-
Center hinge -
Side Hinge-Finger protection model -
Top Hinge
-
2inch Safe Bottom Braket_Adjustable -
Clip Bracket -
Commercial Bottom Braket -
Joint Bracket
-
SIDE SEAL -
TOP SEAL
-
ALUMINUM BOTTOM -
COLLET -
L-Profile -
panel -
Pusher Spring -
Shaft Coupler-Steel -
Solid Balance Shaft_pipe with key way -
Spring Filter -
Steel Roller -
Torsion Spring -
Vertical Track -
window
